VFA · Vacuum Furnace Assembler

Furnace assembly planning on a 3D model

Take the furnace apart in 3D, read each part’s data and assembly note, and follow the project plan.

Create free accountTake the product tour

New accounts are approved by our team, usually within 1 business day.

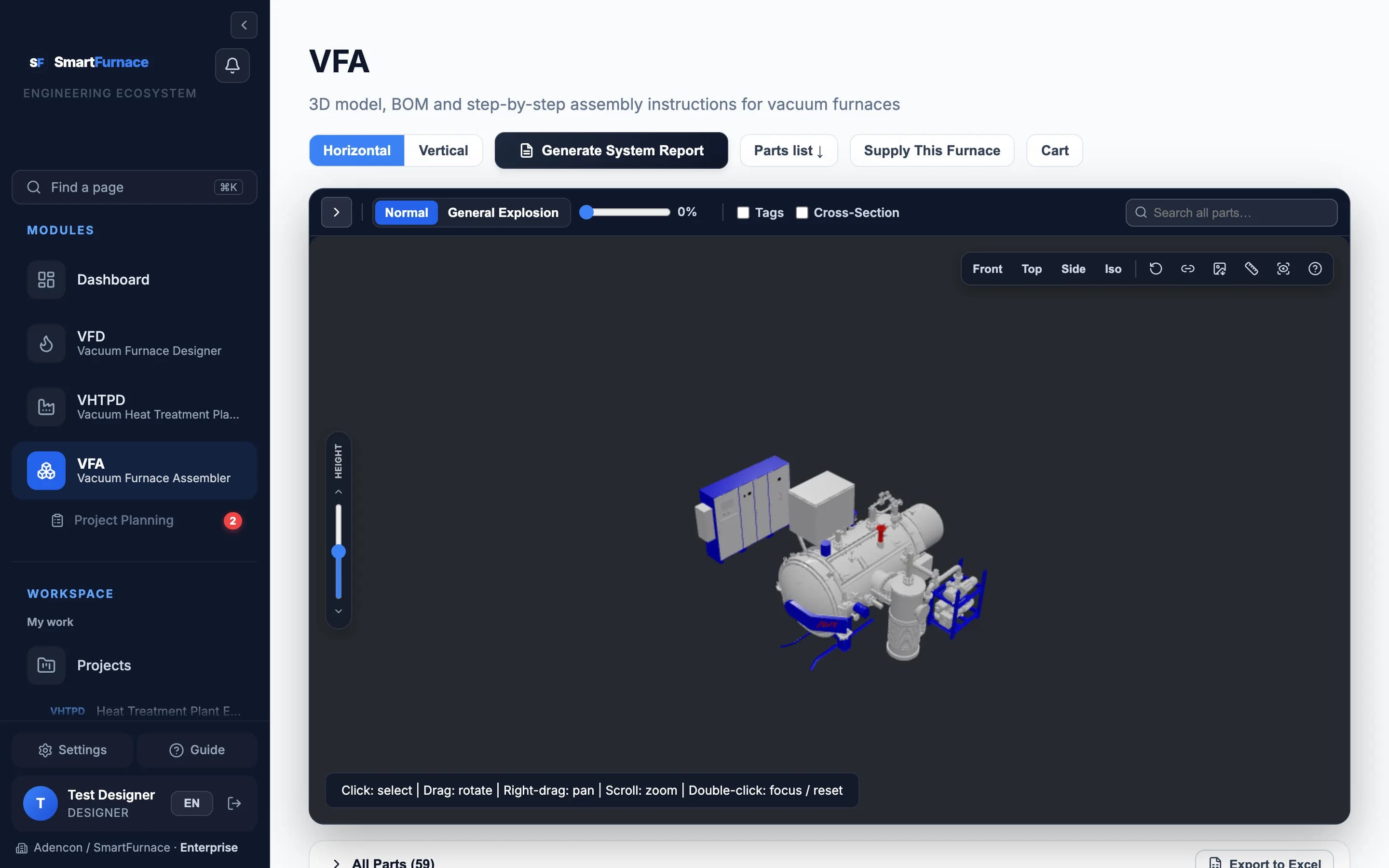

3D view of a horizontal vacuum furnace in the Vacuum Furnace Assembler, with exploded view, labels, cross-section and camera controls
The furnace in 3D: exploded view, cross-section, measuring, part search.

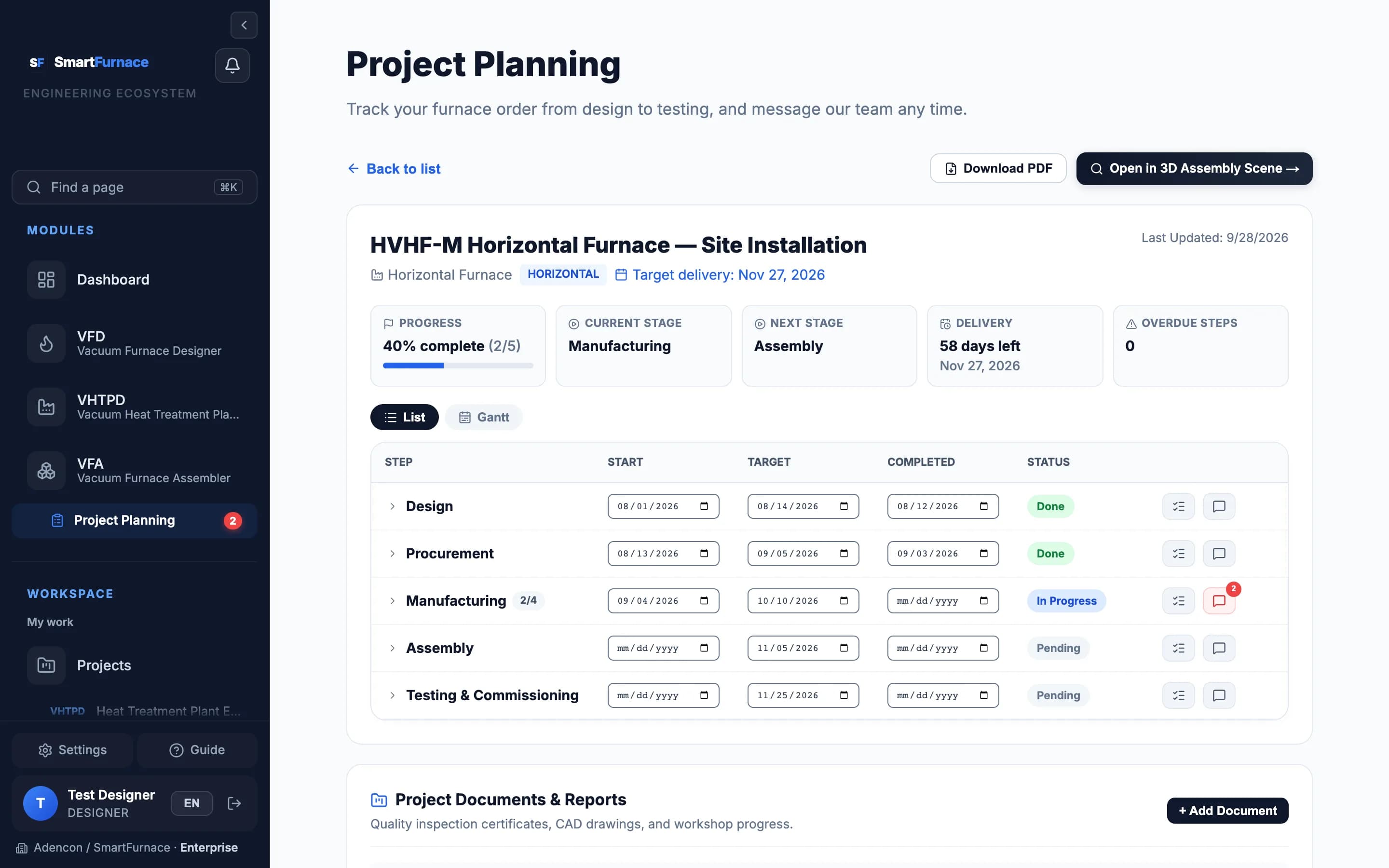

Project Planning screen: progress, current stage, and the stages design, procurement, manufacturing, assembly and testing with dates and status
Project Planning: stages, dates and progress of one furnace order.

What you work with

  • Furnace type: horizontal or vertical.
  • A part: click it on the model or search by name.
  • View tools: exploded view, cross-section, see-through view, labels, measuring in mm.
  • In a project plan: dates, checklists, documents and messages per stage.

What you get

  • Part card: description, material, weight, quantity, specifications, assembly note.
  • Assembly specification and bill of materials as PDF; parts list as Excel.
  • A link to the same view, and an image of it.
  • Quote requests for parts, reviewed by our team and sent to suppliers.
  • Project Planning: stages with dates, progress, Gantt view, PDF and FAT/SAT approval.

How it works

  1. Choose the horizontal or the vertical furnace; the model loads in your browser.
  2. Explode the assembly or cut a section, then select a part.
  3. Read the part card and its assembly note.
  4. Export the bill of materials, or request quotes for parts.
  5. For an order, our team opens a project plan; you follow its stages there.

Good to know

  • The assembler shows two reference furnaces: one horizontal, one vertical.
  • It does not build a 3D model from a furnace designer result.
See this module in the product tour
